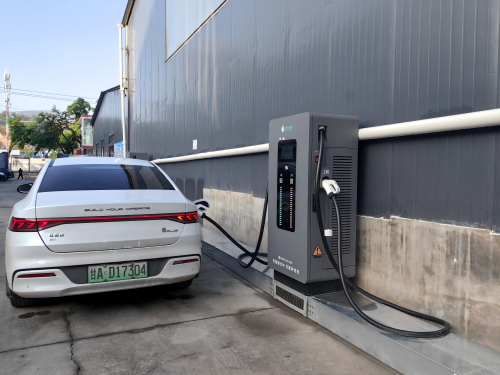

超级充电站是一种为电动汽车提供电能的装置，使电动汽车能够存储足够的电量以支持其运行。充电桩现场大多建设在郊区，充电桩的充电频率过低会造成变压器轻载运行时间过多。现场同时出现感性无功和容性无功、功率因数过低同时出现的情况。

通常有车充电的时候正常，没有车充电时功率因数就很低。充电桩其实就是把交流电转化为直流电进行一个充电的过程，是一个整流回路，整流过程中必然会改变电流的波形而产生谐波。

如果单纯的电容补偿，很容易出现控制器的干扰，导致过补现象。功率因数出现负数，充电桩补偿柜的负载变化频繁，会导致电网电压的电流波动，从而影响电网的稳定性和可靠性。充电桩是属于容性设备，模块里面有很多的电容配件，待机时它会产生无功电流、无功功率；如果充电桩的充电量少了，整体的功率因数低于0.85，那就会被加收力调电费。

此时需要加装SVG设备，通过实时监测电网的电压，电流等参数，并根据需要在短时间内发生无功电流来补偿电网中的无功功率，使电网中的电压和电流更稳定，避免力调电费罚款。

Power factor issue of new energy vehicles

A supercharging station is a facility designed to provide electrical energy to electric vehicles, enabling them to accumulate sufficient power for their operation. Most of these stations are situated in suburban areas. A low charging frequency at these stations often results in transformers operating under light load for extended periods. On-site, both inductive and capacitive reactive power issues, coupled with a low power factor, arise simultaneously.

Typically, the power factor remains normal when a vehicle is being charged, but drops significantly when no vehicle is charging. A charging pile essentially involves converting alternating current (AC) to direct current (DC) for the purpose of charging, functioning as a rectification circuit. Inevitably, this conversion process alters the current waveform, resulting in the generation of harmonics.

If pure capacitive compensation is employed, it often leads to controller interference, resulting in overcompensation. A negative power factor, coupled with frequent load variations in the compensation cabinet of charging piles, can induce voltage and current fluctuations in the power grid, impacting its stability and reliability. Charging piles are capacitive devices, equipped with numerous capacitor components within their modules. In standby mode, they generate reactive current and reactive power. If the charging capacity of the charging piles decrease, causing the overall power factor to fall below 0.85, additional surcharges for power factor adjustment will be imposed on the electricity bill.

At this juncture, it is necessary to install SVG equipment, which monitors the voltage, current, and other parameters of the power grid in real time. Depending on requirements, it can generate reactive current promptly to compensate for reactive power in the grid, thereby stabilizing the voltage and current and preventing penalties for power factor adjustment.
